Precast Concrete Floor and Roof Deck Systems

Metal Edge Plank

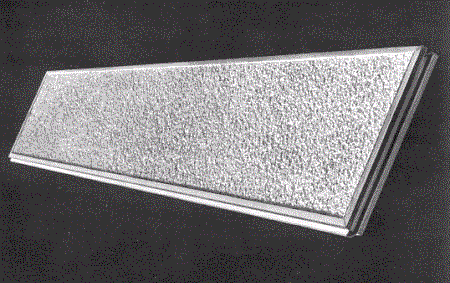

2" Metal-Edge Tongue & Groove  Precast Concrete Plank
General data, load tables

MidCon 2" Metal-Edge Tongue & Groove Plank is a lightweight (12 psf) precast concrete plank produced in a standard 1'-6"x10' x 2" size with a cold-rolled 22 ga. galvanized metal edging. For extreme environmental conditions, stainless steel edging is available.  The plank's T&G design and lightweight characteristic (180 lbs/plank) make handling and installation easy on steel, masonry, or wood framing.  Support spacing can vary, providing for multiple span schemes.  Interlocking edges need not end on supports.  Ideal for retrofit work, mezzanines, and new floors within existing structures. provides an instant concrete walkway when used in interstitial floors or catwalk systems.  It's nailable and a suitable substrate for shingles or clay tiles on  pitched or mansard roofs.  Noncombustible and fire-resistant.  Contact MidCon for recommendations.

Channel slab

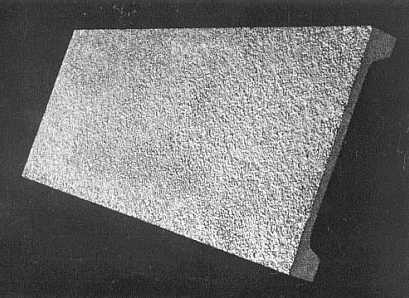

2 3/4", 3 3/4", 4 3/4" Channel Slabs
General data, load tables

2-3/2", 3'3/4", 4-3/4" Channel Slabs
MidCon channel slabs provide a dense, lightweight, fire-resistant, reinforced roof deck system that offer economic and structural advantages.  Galvanized reinforcing mesh, dense concrete, and a smooth finish makes the channel slab ideal for moist environments.  The installed roof slabs result in an attractive, low- maintenance ceiling requiring no additional finishing.  Contact MidCon for recommendations.
